Volvo Penta PJX
We are in the process of putting up parts if you need ones not listed please call us.
| Fig. # | Description | Qty Req'd | Fig. # | Description | Qty Req'd | Fig. # | Description | Qty Req'd | Fig. # | Description | Qty Req'd | |||

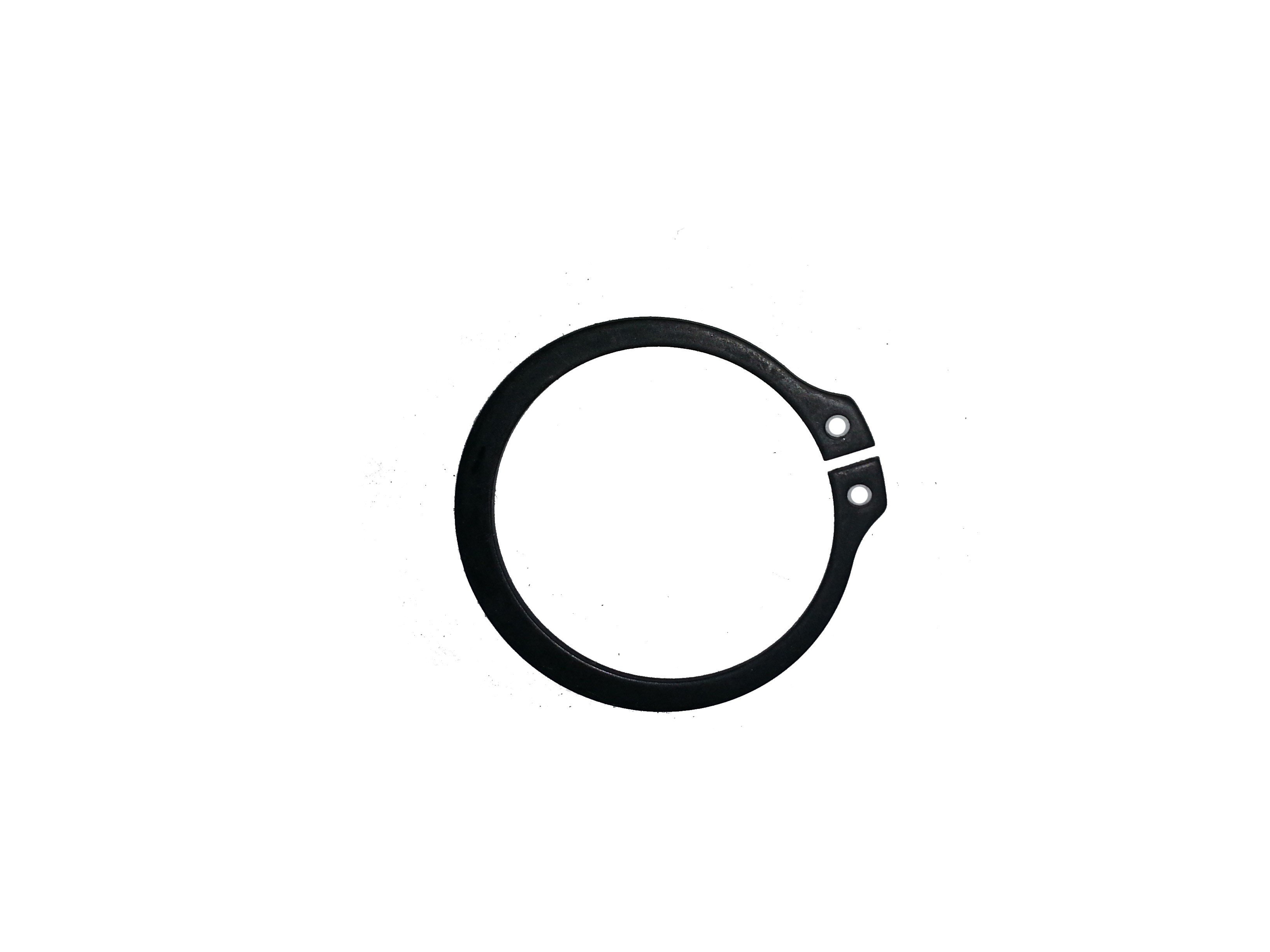

| 1 | Retaining ring | 1 | 17 | Plug, Oil | 2 | 33 | Snap Ring | 1 | 49 | Screw | 12 | |||
| 2 | Sealing, Bearing cap | 1 | 18 | O-ring | 2 | 34 | Thurst Bearing | 1 | 50 | Screw | 11 | |||
| 3 | Cleaning hatch | 1 | 19 | Bowl | 1 | 35 | Sealing ring | 1 | 51 | Screw | 2 | |||
| 4 | O-ring | 1 | 20 | PTFE Nozzle O-ring | 1 | 36 | Retaining ring | 1 | 52 | Water inlet | 1 | |||
| 5 | Hand Hole Cover | 1 | 21 | Jet | 1 | 37 | Sealing washer | 1 | 53 | Rubber plug | 1 | |||
| 6 | Plate | 1 | 22 | Set screw | 1 | 38 | Sealing ring | 2 | 054 | Screw | 3 | |||
| 7 | Screw | 2 | 23 | Hex. socket screw | 1 | 39 | Spacer | 2 | 55 | Screw | 2 | |||

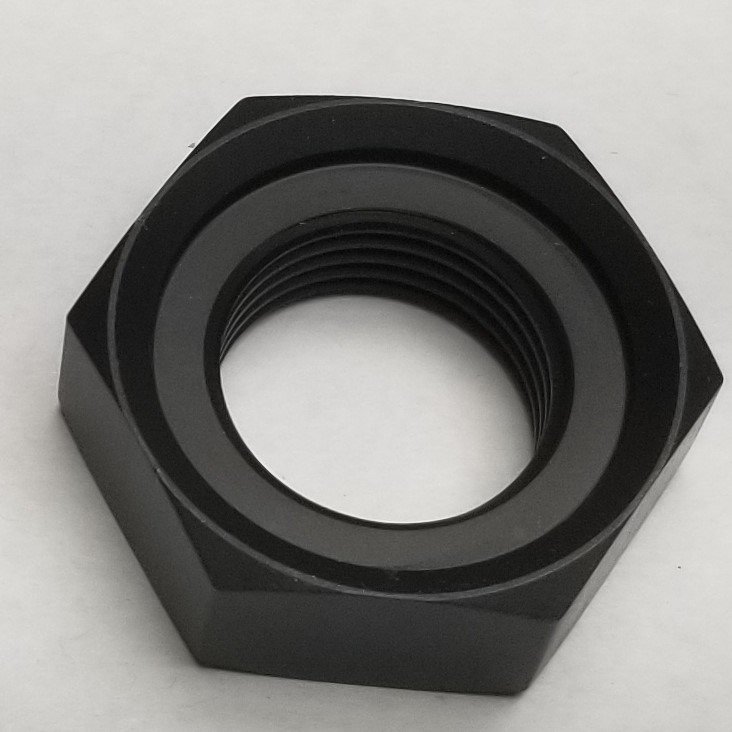

| 8 | Steering Tube Nuts | 2 | 24 | Bucket | 1 | 40 | Housing | 1 | 56 | Plate | 1 | |||
| 9 | Steering Cable Thru Hull | 1 | 25 | Decal, PJX - Power Jet | Not Available | 41 | O-ring | 2 | 57 | Bracket, Cavitation plate | 1 | |||
| 10 | Steering Cable Thru Hull Tube | 1 | 26 | Bowl to Suction O-rings | 1 | 42 | Bowl, One piece | 1 | 58 | Washer | 6 | |||
| 11 | Steering Tube End Caps | 1 | 27 | Plastic Insulator | 1 | 43 | Bearing | 4 | 59 | Hexagon nut | 6 | |||
| 12 | Extension, Steering | 1 | 28 | Shouldered Wear Rings | 1 | 44 | Ball joint | 1 | 60 | Woodruff key, impeller | 1 | |||
| 13 | Spacer, Steering extension | 1 | 29 | Aluminum Impeller | 1 | 45 | Shaft, Reverse gate | 2 | 61 | Set screw | 1 | |||
| 14 | Lock nut | 1 | 30 | Impeller Nut | 1 | 46 | Nipple | 1 | 62 | Shaft | 1 | |||
| 15 | Steering arm | 1 | 31 | Bowl Seal | 1 | 47 | Lock nut | 23 | 63 | Rudder | 1 | |||
| 16 | Woodruff Key | 1 | 32 | Glaicer Bowl Bearing | 2 | 48 | Washer | 23 | 64 | Zinc electrode | 1 |
:
from
to
from
to
Clear
Clear
Products: 1–18 of 18
- 6% off
- 55% off
- 7% off
- 3% off
- 5% off
- 10% off
- 27% off
- 7% off
- 5% off
- 6% off
- 2% off
Sealing Ring fit Volvo Penta PJX — Fig. No. 38
2 left in stock- 9% off
Thrust Bearings fit Volvo Penta PJX — Fig. No. 34
Out of stockSealing Ring fit Volvo Penta PJX — Fig. No. 35
Out of stock
