| Fig. No. | Description | Qty. Required | Mfg. No. | | Fig. No. | Description | Qty. Required | Mfg. No. |
|---|
| 1 | Suction Housings | 1 | J0726A | | 32 | 3/8" Jam Nuts | 1 | J0913 |
| 2 | Bearing Caps | 1 | J0338 | | 33 | 3/8" Locknuts | 2 | J0912 |
| 3 | Bearing Cap Seals | 1 | SL1007 | | 34 | Steering Tillers | 1 | J0645 |
| 4 | Bearing Cap Screws | 4 | J0908 | | 35 | Tiller Shafts | 1 | J0397 |
| 5 | Bearing Cap O-Rings | 1 | J0102 | | 36 | Woodruff Keys | 2 | R5507 |
| 6 | Suction Seals | 1 | SL1507 | | 37 | 3/4" Nyliner Bearings | 4 | B2007 |
| 7 | Grease Fittings | 1 | J0480 | | 38 | Nozzle Housings | 1 | J0027 |
| 8 | Grease Fitting Caps | 1 | J1005 | | 39 | Nozzle Housing O-Rings | 1 | J0101 |
| 9 | Packing Gland Nuts | 2 | J0916 | | 40 | 5/16" Spring Lock Washers | 11 | F05 LW |
| 10 | Packing Gland Followers | 1 | SC2507 | | 41 | 5/16" Hex Head Cap Screws | 10 | J0915 |
| 11 | Packing Gland Bolts | 2 | J0917 | | 42 | 5/16" Socket Head Cap Screws | 1 | J0927 |
| 12 | Rope Packing for Pump Shafts | 5 | SC3007 | | 43 | 5/16" Square Head Set Screws | 3 | J0920 |
| 13 | Rod Ends | 2 | J0907 | | 44 | PTFE O-Rings | 1 | O1505 |
| 14 | Flange Nuts | 2 | J0680 | | 45 | Nozzles | 1 | J0405 |
| 15 | Hand Hole Washers | 2 | J0902 | | 46 | Reverse Bucket Pins | 2 | J0826 |
| 16 | Groove Pins | 2 | J0479 | | 47 | Reverse Buckets | 1 | J0250 |
| 17 | Hand Hole Covers | 1 | J0129 | | 48 | 1/4" Flat Washers | 1 | F04 FW |
| 18 | Hand Hole Cover O-Rings | 1 | O1002 | | 49 | Ball Joint Rod Ends | 1 | J0107 |
| 19 | Plastic Insulators | 1 | WR6004 | | 50 | 1/4" Hex Head Cap Screws | 1 | J0904 |

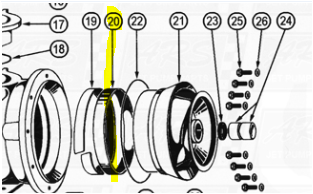

| 20 | Stainless Steel Shouldered Wear Rings | 1 | WR5000 | | 51 | 1/4" Locknuts | 1 | J0905 |
| Bronze Shouldered Wear Rings | | 52 | Rudder Pins | 1 | J0753 |
| 21 | Aluminum Impellers | 1 | IMB*** | | 53 | Rudder Bolts | 1 | J0945 |
| Stainless Steel Impellers | | 54 | Rudder Washers | 1 | J0901 |
| 22 | Bowl to Suction O-Rings | 1 | J0100 | | 55 | Rudders | 1 | J0596 |
| 23 | Bowl Seals | 1 | SL2003 | | 56 | Retaining Rings | 1 | J0484 |
| 24 | Glacier Bowl Bearings | 2 | B1502 | | 57 | Thrust Bearings | 1 | B1007 |
| 25 | 3/8" Hex Head Cap Screws | 9 | J0918 | | 58 | Shaft Sleeve Slinger Rings | 1 | SH2507 |
| 26 | Bowl Washers | 8 | J0909 | | 59 | Pump Shafts | 1 | SH1107 |
| 27 | Bowls | 1 | J0496 | | 60 | Impeller Nuts | 1 | SH3507 |
| 28 | Oil Plugs | 2 | J0938 | | 61 | Impeller Keys | 1 | SH3007 |
| 29 | 1/4" Nylon Washers | 2 | J0104 | | 62 | 3/8 Hose Barb x 1/2 MPT | 1 | J0818 |
| 30 | Bowl End Caps | 1 | J0850 | | 63 | 1/2" Pipe Plugs | 1 | J0820 |
| 31 | 1/8 Pipe Plugs | 1 | J0883 |
